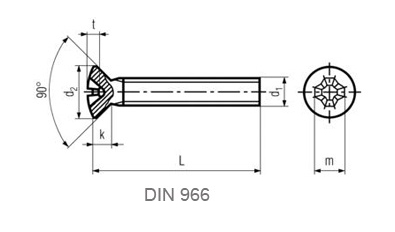

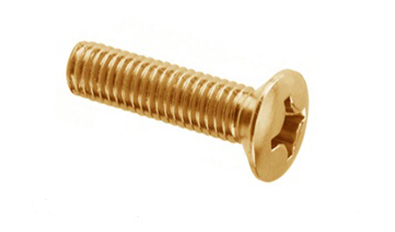

Brass Phillips Oval Countersunk Head Screws Din 966
Brass Screws and Fasteners India is one of the leading manufacturers of DIN 966 Brass Screws Din 966 Raised Countersunk Oval head Phillips Cross recessed head machine screws CSK screws. These Brass Phillips head screws are made by cold forging / cold heading on our high speed automatic machines. Our metric machine screws CSK Screws Brass countersunk head screws are exported worldwide.
Finish : Nickel plated Brass screws, Tin, Natural
Materials : Brass, Stainless Steel 304 316
Machine Screws
4.8 Grade
Phillips Flat Head Countersunk
M060 -965-4.8 Zink Plated
DIN 965
ISO 7046
4.8 Grade
Phillips Flat Head Countersunk
M060 -965-4.8 Zink Plated
DIN 965
ISO 7046

Diameter | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 |
---|---|---|---|---|---|---|---|
a | - | 0.9 | 1 | 1.4 | 1.6 | 2 | 25 |
f | 0.5 | 0.6 | 0.75 | 1 | 1.25 | 1.5 | 2 |
k | 1.2 | 1.5 | 1.65 | 2.2 | 2.5 | 3 | 4 |
d1 | 3.8 | 4.7 | 5.6 | 7.5 | 9.2 | 11 | 14.5 |
Driver Size | H1 | H1 | H1 | H2 | H2 | H3 | H4 |
Length in (mm) | Pkg | ||||||
4 | 100 | ||||||
5 | 100 | 100 | |||||
6 | 100 | 100 | 100 | 100 | |||
8 | 100 | 100 | 100 | 100 | 100 | ||
10 | 100 | 100 | 100 | 100 | 100 | 100 | |
12 | 100 | 100 | 100 | 100 | 100 | 100 | |
14 | 100 | 100 | 100 | 100 | |||
16 | 100 | 100 | 100 | 100 | 100 | ||
20 | 100 | 100 | 100 | 100 | 100 | ||
25 | 100 | 100 | 100 | 100 | 100 | ||
25 | 100 | 100 | 100 | 100 | 100 | ||
30 | 100 | 100 | 100 | 100 | |||
35 | 100 | 100 | 100 | 100 | |||
40 | 100 | 100 | 100 | 100 | |||
45 | 100 | ||||||
50 | 100 | 100 |
